Author Topic: What is on the bench today  (Read 2657 times)

Offline Tbot

Re: What is on the bench today
« Reply #30 on: June 13, 2020, 09:32:08 AM »
All seems good.  Tacky old lube all over.  Dirty switches etc.  All the usual suspects



What a nice and solid mechanism.  Nicely balanced with perfect matching springs to give it a solid feel.




Offline Tbot

Re: What is on the bench today
« Reply #31 on: June 16, 2020, 09:12:30 PM »


Going in on the other side



Cleaning as we go



Unit is reassembled.  This is an awesome machine.  It gets some amazing base from a cassette.  Yet crisp on the highs.  This is still old tech.  So for what it is, it sounds good.  Love old school :groovy:

Offline Tbot

Re: What is on the bench today
« Reply #32 on: October 16, 2020, 11:56:58 AM »


Back on the Akai again.  Replacing the 20 x snubber components.  Mantech said they can get, but never came back with price or availibility.

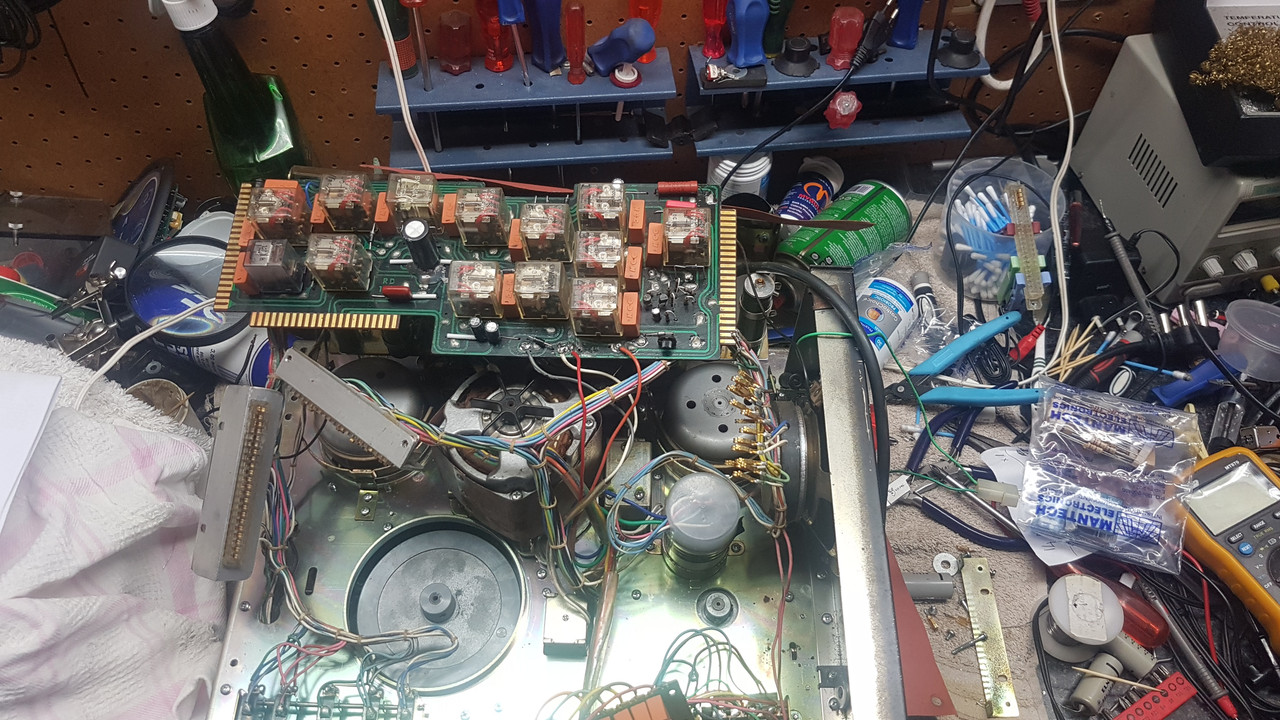

The relay board and the control board contains 20 in total. 120 ohm 1W resistor in series with 0.1uF poly cap 400v.  I will grab a pic shortly and share.

Offline Tbot

Re: What is on the bench today
« Reply #33 on: October 16, 2020, 12:00:37 PM »
This is the control board.  Pic is not great, but the orange squares left middle are swollen and cracked.
host images

Offline Tbot

Re: What is on the bench today
« Reply #34 on: October 16, 2020, 12:08:35 PM »
On the Akai 4000D. The cam for the FFW and RWD gave in. The pic shows the original cam RH and home made cam LH.  The original is held together by Q Bond.  Took about 6 hours with a hacksaw and files.  Not pretty, but 100% Functional.


And here it is in position.


Offline HB

Re: What is on the bench today
« Reply #35 on: October 16, 2020, 12:39:27 PM »
On the Akai 4000D. The cam for the FFW and RWD gave in. The pic shows the original cam RH and home made cam LH.  The original is held together by Q Bond.  Took about 6 hours with a hacksaw and files.  Not pretty, but 100% Functional.


And here it is in position.


Outstanding.  :notworthy:
