Author Topic: MY First Subwoofer Build 15"  (Read 1411 times)

Offline Curlycat

Re: MY First Subwoofer Build 15"
« Reply #15 on: May 14, 2018, 09:26:24 PM »
Wow, stupendous Craig!  :thumbs:

Offline Nicholas

Re: MY First Subwoofer Build 15"
« Reply #16 on: May 15, 2018, 08:05:32 AM »
Small world, you have done 20mm bending for me / Equalizer that Schuurman couldn't do...

Is the cutting of thick MDF a service you can provide, or just something you were playing with?

Online Chingy

Re: MY First Subwoofer Build 15"
« Reply #17 on: May 15, 2018, 09:11:16 AM »
Small world, you have done 20mm bending for me / Equalizer that Schuurman couldn't do...

Is the cutting of thick MDF a service you can provide, or just something you were playing with?
I do remember , I was at Broekhuizen before, it's something I'm playing with, but email me your designs
info@servmat.co.za
« Last Edit: May 15, 2018, 09:14:13 AM by Chingy »
VA BW Pre, Tannoy Chevoits,Linn Kann, on Linn Stands,
Power trio (guitar, bass, and drums)

Online Toxxyc

Re: MY First Subwoofer Build 15"
« Reply #18 on: May 15, 2018, 01:26:27 PM »
This looks EPIC.

Offline prajayn

Re: MY First Subwoofer Build 15"
« Reply #19 on: May 15, 2018, 01:41:35 PM »
This is good to know.

Nice work @chingy

Online Chingy

Re: MY First Subwoofer Build 15"
« Reply #20 on: May 16, 2018, 09:31:15 AM »
baffles cut for drivers, double 18mm, so 36mm, ported or sealed with the front plate in-place


VA BW Pre, Tannoy Chevoits,Linn Kann, on Linn Stands,
Power trio (guitar, bass, and drums)

Online Chingy

Re: MY First Subwoofer Build 15"
« Reply #21 on: June 18, 2018, 03:52:31 PM »

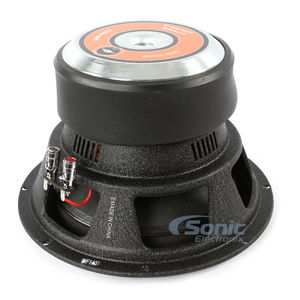

First test fit of drivers, Cadence S2W15D4.V2 1600W 15" S2 Series Dual 4-ohm




General Features:
15" S2 Series Dual 4-ohm Car Subwoofer
Power Handling:
Peak: 1600 watts
RMS: 800 watts
Recommended power range: 400 - 800 Watts RMS
Kevlar Reinforced Ultra-Stiff Paper Composite Cone
High Excursion Double Laminated Foam Surround
2" Dual ASV Voice Coil
Black Aluminum 4-Layer Voice Coil Former
Expanded and Rolled Steel Basket
Magnet Motor with Heat Pump Cooling Technology
Aero Style Oversize Magnet Motor Vent
Quad Layer Linear Progressive Conex Spiders
Integrated High-Current Tinsel Leads
Ultra Saturated, High “BL” Magnetic Motor Gap
Extended Pole Technology
Woven Fiberglass Dustcap
Molded Rubber Trim Gasket
Stylized Magnet Protection Rubber Boot
Dual Nickel Plated Spring Loaded Push Terminals
Top-mount depth: 8.35"
Cutout Diameter: 14.00"
Frequency Response: 25 - 500 Hz
Sensitivity: 94 dB

TS Parameters
FO: 30.377 Hz
QMS: 7.813
QES: 0.561
QTS: 0.524
CMS: 84.438 uM/N
MMS: 325.103 gr
MMD: 311.237 gr
NO: .403%
BL: 18.808 T/M
SPL: 94 dB
VAS: 83.535 L
RE: 3.6 Ohm
SD: 834.680 cm
XMAX: 24.5
« Last Edit: June 18, 2018, 04:06:29 PM by Chingy »
VA BW Pre, Tannoy Chevoits,Linn Kann, on Linn Stands,
Power trio (guitar, bass, and drums)

Online Chingy

Re: MY First Subwoofer Build 15"
« Reply #22 on: June 18, 2018, 04:13:59 PM »


:groovy:
VA BW Pre, Tannoy Chevoits,Linn Kann, on Linn Stands,
Power trio (guitar, bass, and drums)

Offline oradba69

Re: MY First Subwoofer Build 15"
« Reply #23 on: June 18, 2018, 04:20:08 PM »
Wowwwww.
Manufacturer of Audio Video furniture.
Importer and distributor of Trichord.
http://www.lerange.co.za

Online Shonver

  • Trade Count: (+8)
  • AVForums Grandmaster
  • *****
  • Posts: 10,450
  • Total likes: 16
  • Criss-cross rhythms that explode with happiness
    • Elipse (under construction)
Re: MY First Subwoofer Build 15"
« Reply #24 on: June 18, 2018, 05:14:26 PM »
 :thumbs:

They say a picture paints a thousand doef doefs. How is it sounding, Craig?

________________

DON'T PANIC
Capie

Online Chingy

Re: MY First Subwoofer Build 15"
« Reply #25 on: June 18, 2018, 05:53:08 PM »
Shaun they deep, really deep, only sub I had with comes close was the sonor i had a few months ago

Boxes has no dog blanket or ports yet, :nutter:, so could even sound better once have done playing with different lengths.

But I'm at a point, do I spray painting or veneer  :thinking:

VA BW Pre, Tannoy Chevoits,Linn Kann, on Linn Stands,
Power trio (guitar, bass, and drums)

Online Chingy

Re: MY First Subwoofer Build 15"
« Reply #26 on: June 18, 2018, 06:34:31 PM »


:groovy:
Details on boxes to left to follow :nutter: :giggle:
VA BW Pre, Tannoy Chevoits,Linn Kann, on Linn Stands,
Power trio (guitar, bass, and drums)

Offline Gerlach

Re: MY First Subwoofer Build 15"
« Reply #27 on: June 19, 2018, 12:39:22 PM »
Craig, they look awesome and think they will sound insane. Just a tip from my side, add more screws in to that box to make that box strong and to prevent flex. About 200 screws went in to my DIY sub build.

I think what will look sick if you smooth it out with body fuller and spray it. Something like this,


Good drivers have dead flies on the side windows. (Walter Röhrl)

Online Chingy

Re: MY First Subwoofer Build 15"
« Reply #28 on: June 20, 2018, 09:03:03 AM »
panels has dowels and wood glue also, i'm busy filling the holes, just need to finish the front plates , just to much to do, got the anodizing yesterday, so this on a back burn, building amps again

VA BW Pre, Tannoy Chevoits,Linn Kann, on Linn Stands,
Power trio (guitar, bass, and drums)

Online Chingy

Re: MY First Subwoofer Build 15"
« Reply #29 on: June 20, 2018, 11:16:07 AM »
next on the list is Binding Post Plates,




bought these from Bertus
https://www.avforums.co.za/index.php/topic,72289.0.html

to make these

VA BW Pre, Tannoy Chevoits,Linn Kann, on Linn Stands,
Power trio (guitar, bass, and drums)
