long weekend build
« on: June 19, 2017, 08:42:23 AM »
what a busy weekend i had

Got these from Gideon, November last year, and just put the box under one of the tables.  :popcorn:

so did some cad drawings of the different layouts.

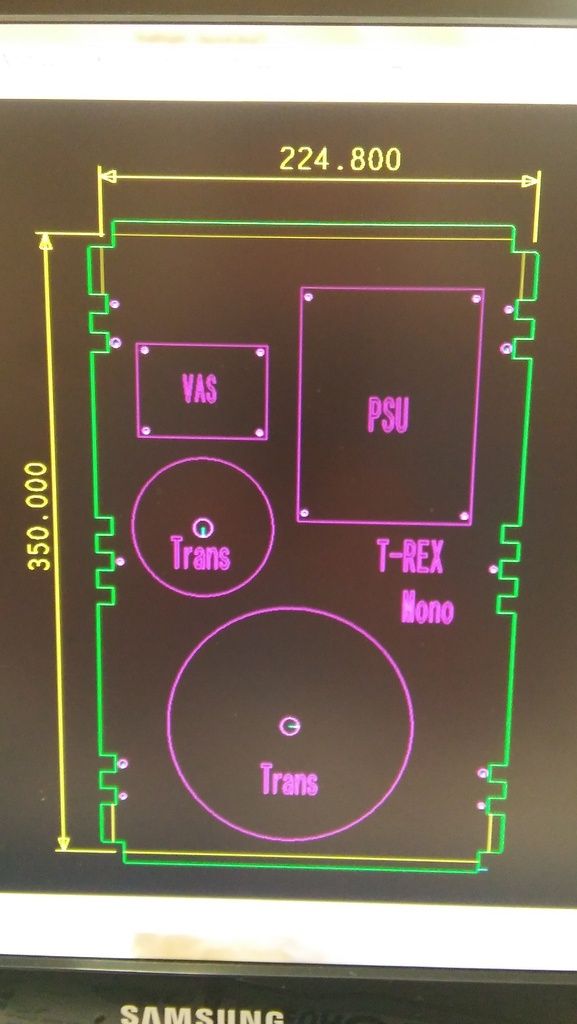

T-Rex, building mono's

bottom plate layout, 2mm Alu, laser cut and bending to be done

more too follow
« Last Edit: June 19, 2017, 08:46:32 AM by Chingy »
VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #1 on: June 19, 2017, 08:54:39 AM »


^^^^
after laser cutting and bending

then i did some 5.1mm and 10mm Alu 5083 , Waterjet cutting, for the top,sides and front plate
will upload more once photobucket works again



VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #2 on: June 19, 2017, 09:16:45 AM »
10mm alu, Waterjet cut



then i had some heatsinks already mounted to side rails,



but i want a clean look on the monos.
so i'm going to use the the 10mm alu .
so next we drill and tap M4
VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #3 on: June 19, 2017, 09:36:05 AM »
drilling and tapping
10mm alu 5083, so will be drilling 8-9mm deep for M4 cap screws



first plate mark then center punch, second plate drilled 3.2mm for M4 tap



VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #4 on: June 19, 2017, 10:04:45 AM »
next we start to fill the holes in the bottom plates, these will hold, transformers and PSU and VAS boards mounted. the amp board will be on a second raised layer
sorry for the finger prints on the alu



next we bolt on the sides.



mono done

VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #5 on: June 19, 2017, 10:14:47 AM »
more pics,




so this week i will remove all the alu panels and send them off to anodizing, will go for black

VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #6 on: June 19, 2017, 10:31:38 AM »
also done some case work on my older Kindaps







these rails make things really easy
VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Gerlach

  • Trade Count: (+5)
  • AVForums Grandmaster
  • *****
  • Posts: 1,312
Re: long weekend build
« Reply #7 on: June 19, 2017, 01:45:18 PM »
Looks like everyone had a nice DIY long weekend :) Build looks really nice Chingy  :2thumbs:
What setup are you running in this one?
Good drivers have dead flies on the side windows. (Walter Röhrl)

Offline Samayanaya

  • Trade Count: (+1)
  • AVForums Veteran
  • ***
  • Posts: 209
Re: long weekend build
« Reply #8 on: June 19, 2017, 02:03:10 PM »
Looks awesome! It looks like you mounted the transistors quite high on the heatsink?

Where will you be getting the anodizing done?

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #9 on: June 19, 2017, 05:30:37 PM »
Will be using cape anodizing.
Changed the clour on the monos to natural.
Stereo kidnap will be black
VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline AudioEars

  • Trade Count: (+3)
  • AVForums Veteran
  • ***
  • Posts: 141
    • Vorna TV & Satellite
Re: long weekend build
« Reply #10 on: June 19, 2017, 07:40:44 PM »
Well done
I will like to see the finished unitd :thumbs:

Offline SeanS

  • Trade Count: (+7)
  • AVForums Grandmaster
  • *****
  • Posts: 2,125
Re: long weekend build
« Reply #11 on: June 19, 2017, 07:55:24 PM »
Will be using cape anodizing.

I'm going to use then tomorrow... how do you finish before having anodising done?

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #12 on: June 20, 2017, 07:24:05 AM »
I'm going to use then tomorrow... how do you finish before having anodising done?
Hi Sean
I just clean them with a general cleaner, I use the Green brand,

they also clean the parts before they start.
VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Chingy

  • Trade Count: (+46)
  • AVForums Grandmaster
  • *****
  • Posts: 1,287
  • VA Black Widow Trio
Re: long weekend build
« Reply #13 on: June 20, 2017, 07:29:52 AM »
Looks like everyone had a nice DIY long weekend :) Build looks really nice Chingy  :2thumbs:
What setup are you running in this one?

Hi, that is a Kidnap, build by Andrew Monnink, i did some alu parts for him as a swap.
use this one daily, running a pair of Coral BX-300 -in my garage- radio and
VA BW Pre, Gunter Bolero Mono's, Tannoy Chevoits,, VA BW Mono's, Tara Labs Helix 8 BSM Termination
Power trio (guitar, bass, and drums)

Offline Rhino

  • Trade Count: (+4)
  • AVForums Grandmaster
  • *****
  • Posts: 1,031
Re: long weekend build
« Reply #14 on: June 20, 2017, 08:51:58 AM »
Brilliantly done.
Do you still need to do final finishes?
