Re: Air Loudpeakers
« Reply #195 on: April 23, 2017, 01:54:00 PM »
So I promised some pics of the baffles. Here are a few:

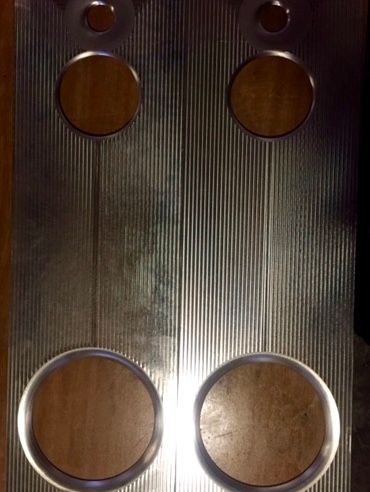

The 2 baffles, skimmed and ready for bead blasting and anodising (The lines are only because of skimming process).

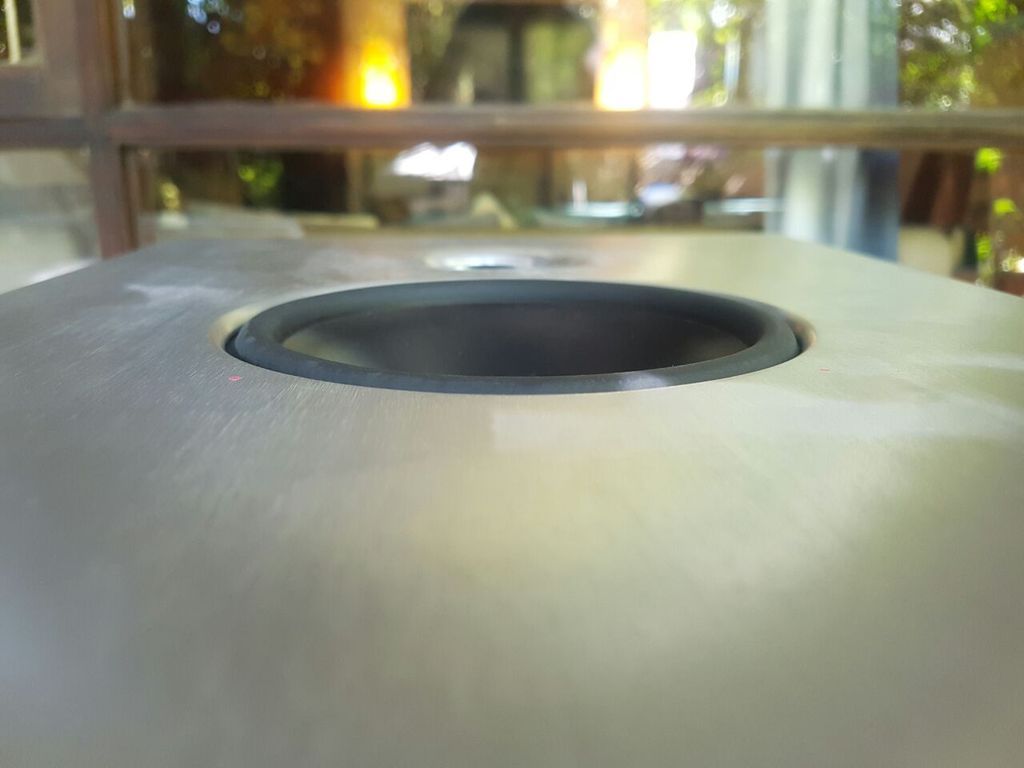

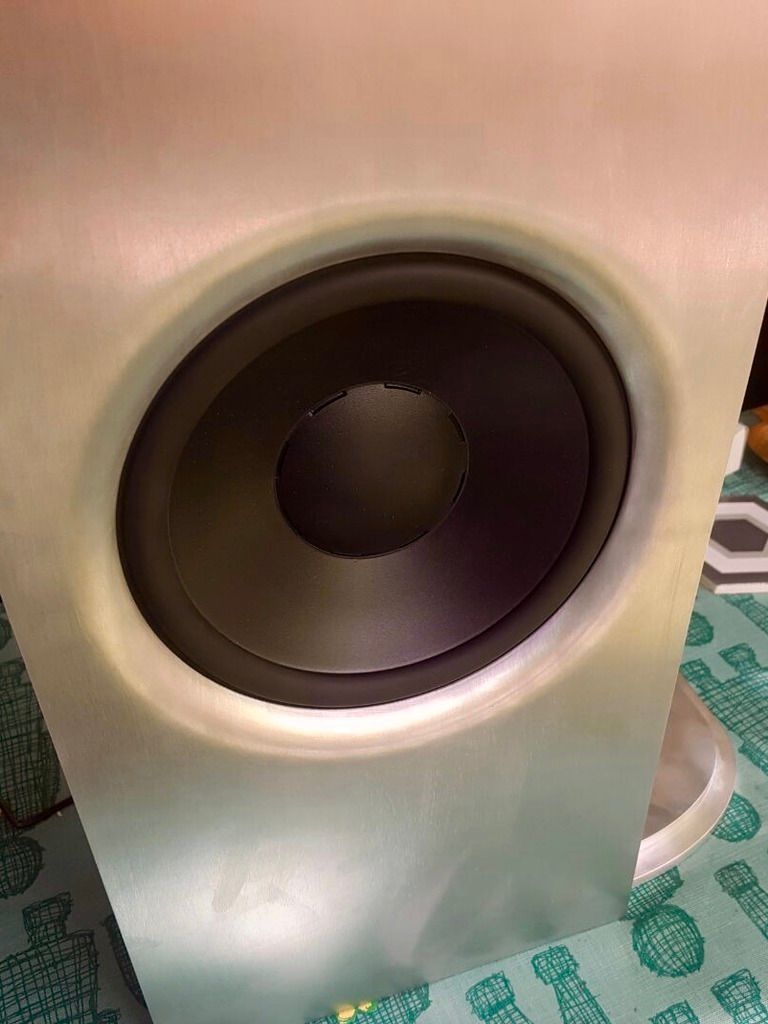

And some close up from the front.

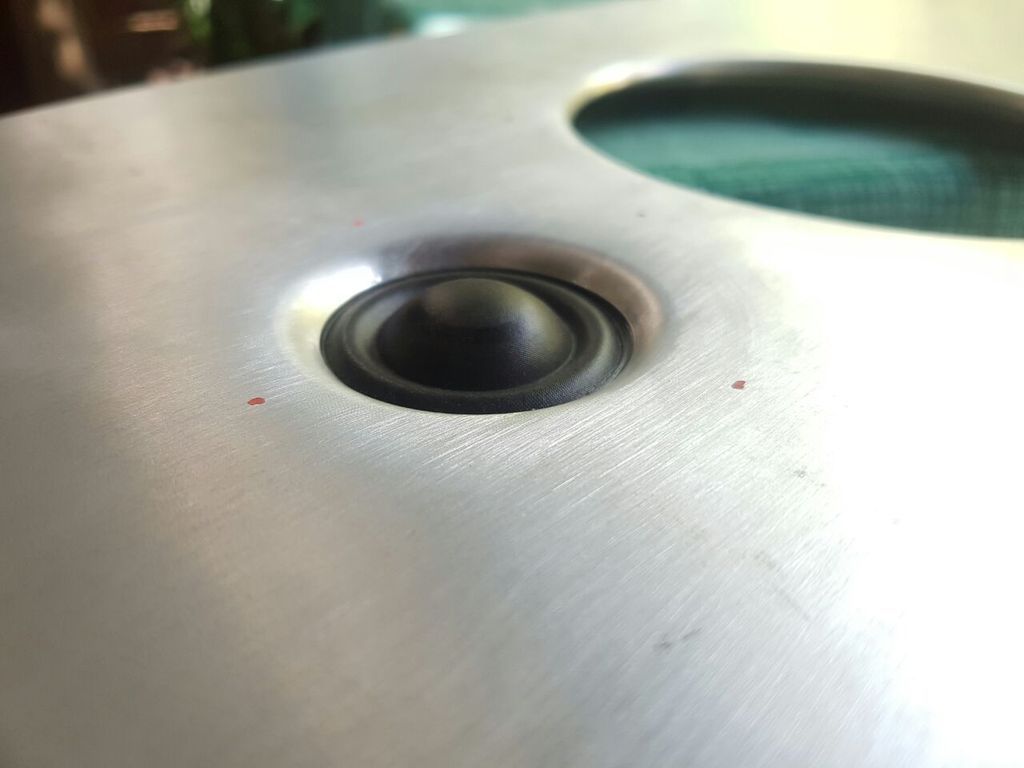

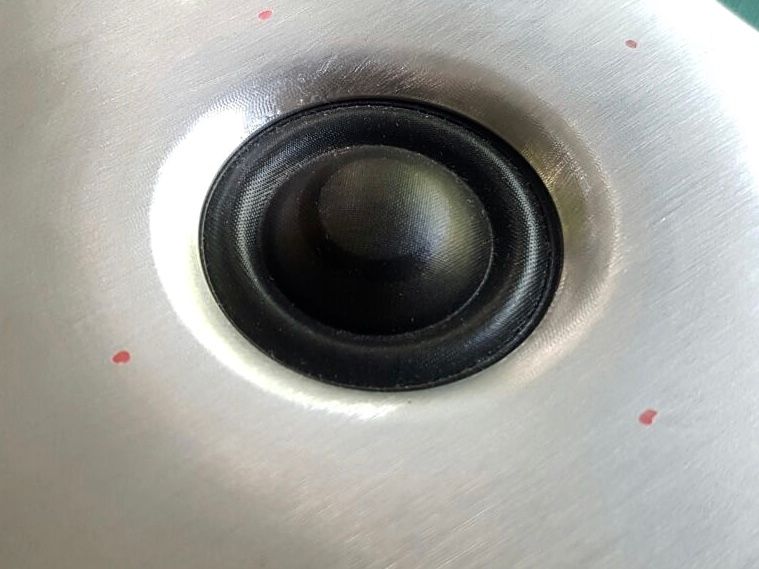

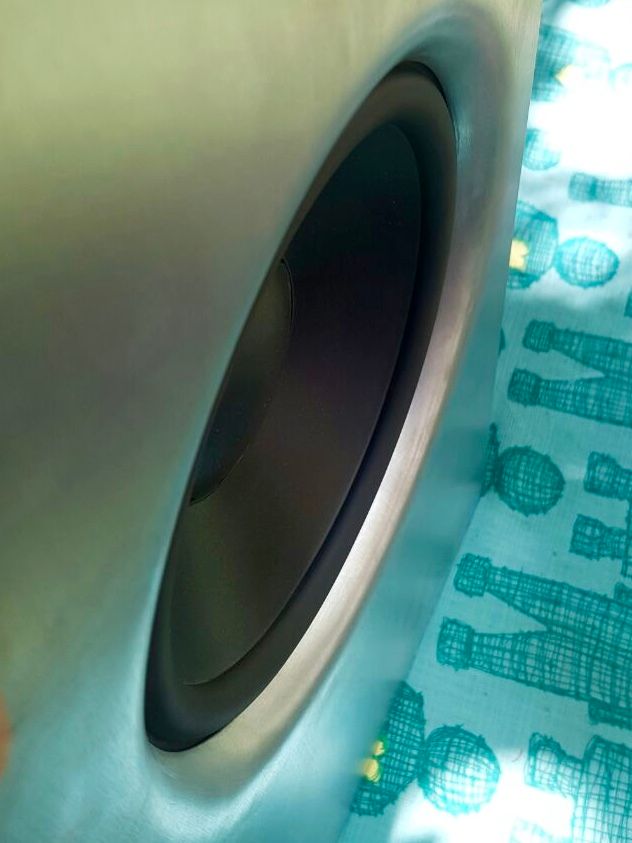

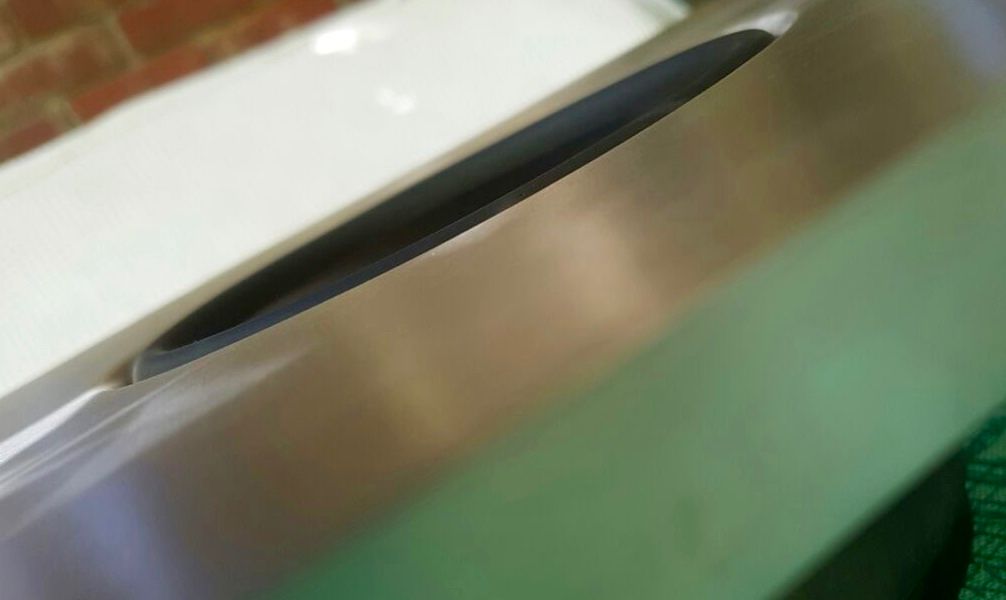

Some closer pics

(Red dots were a small ridge that we could detect and subsequently adjust the design, CNC programming and that we skimmed off).

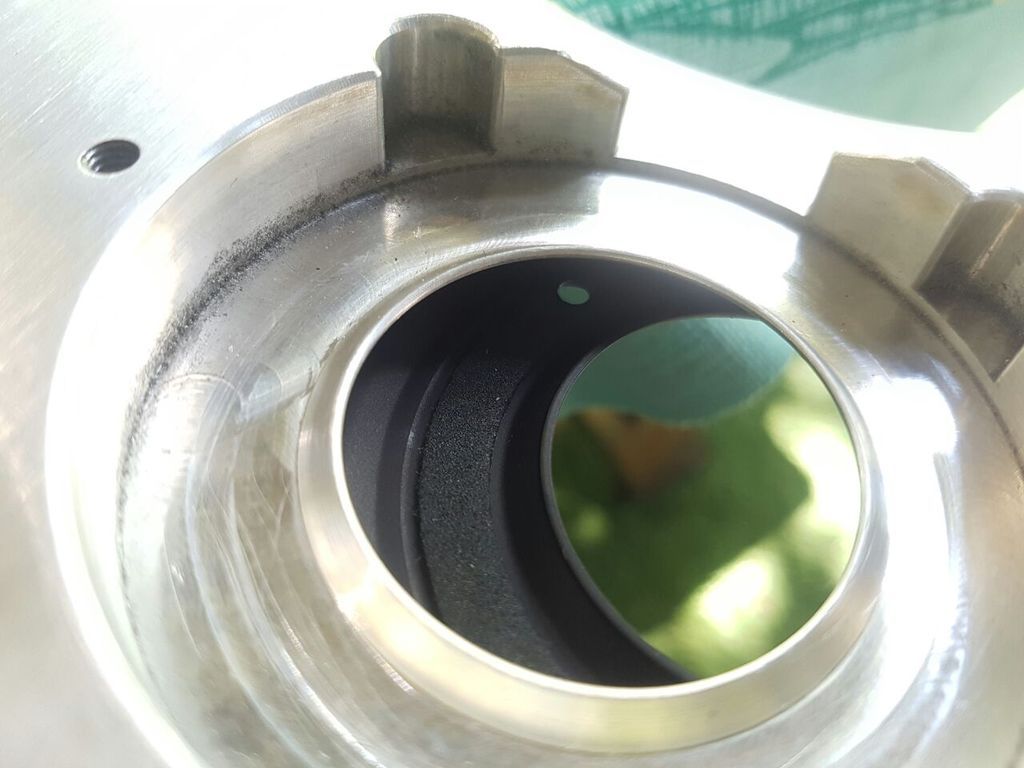

And some of the details at the back.
